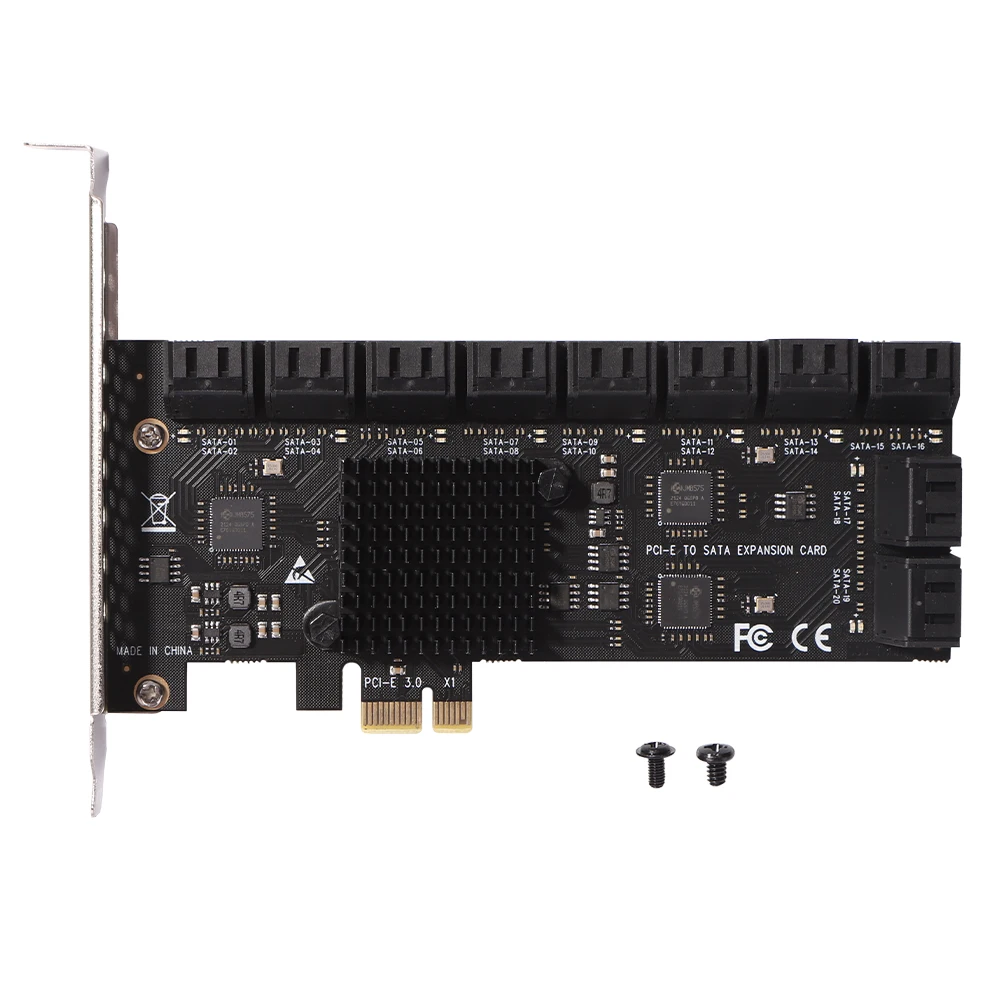

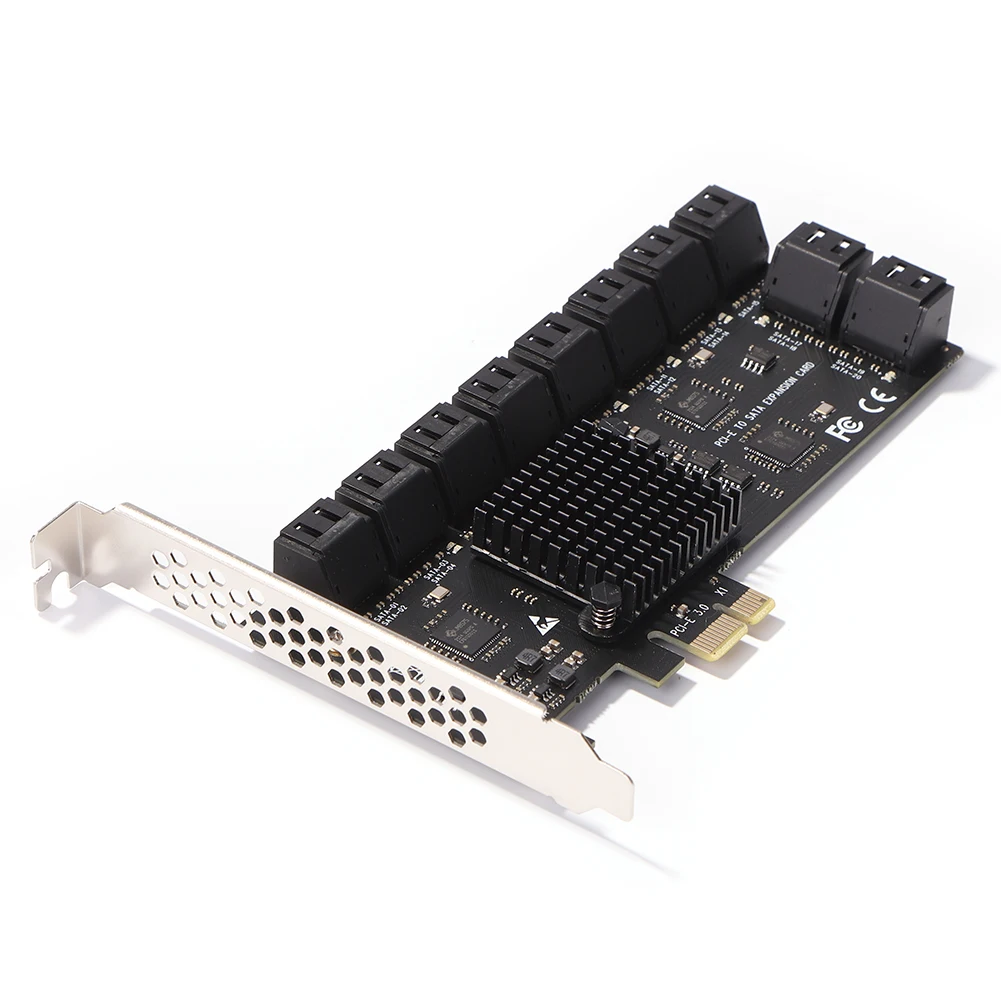

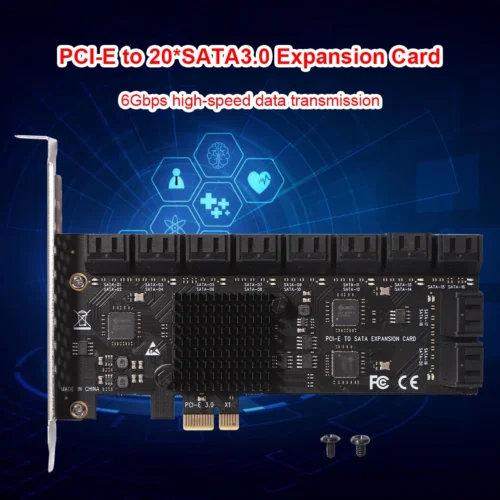

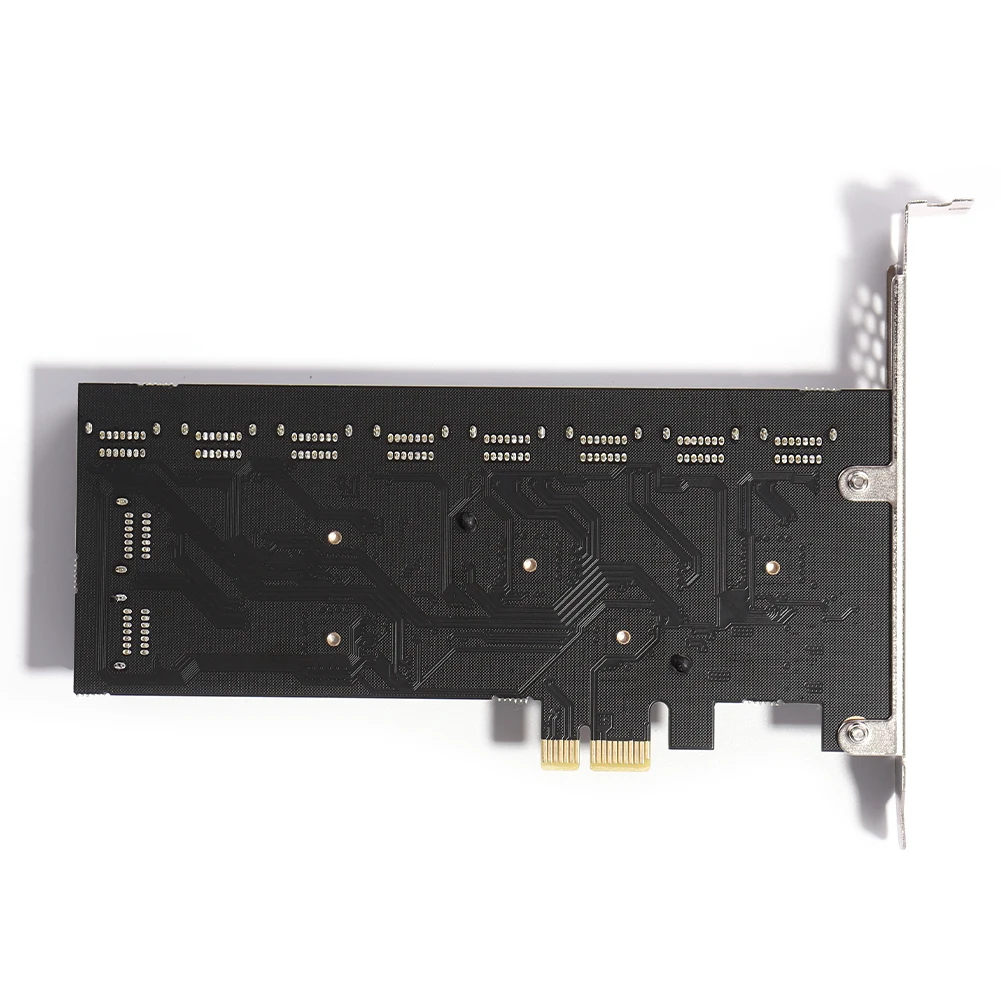

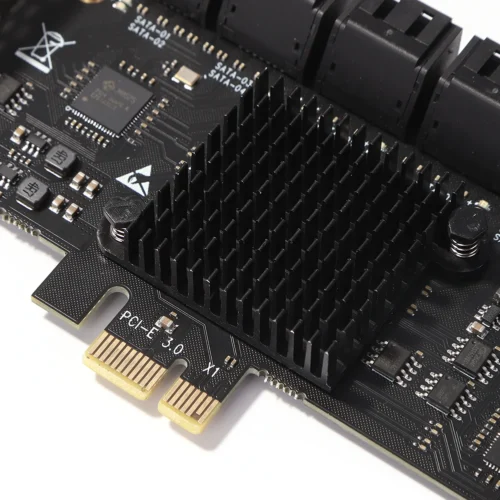

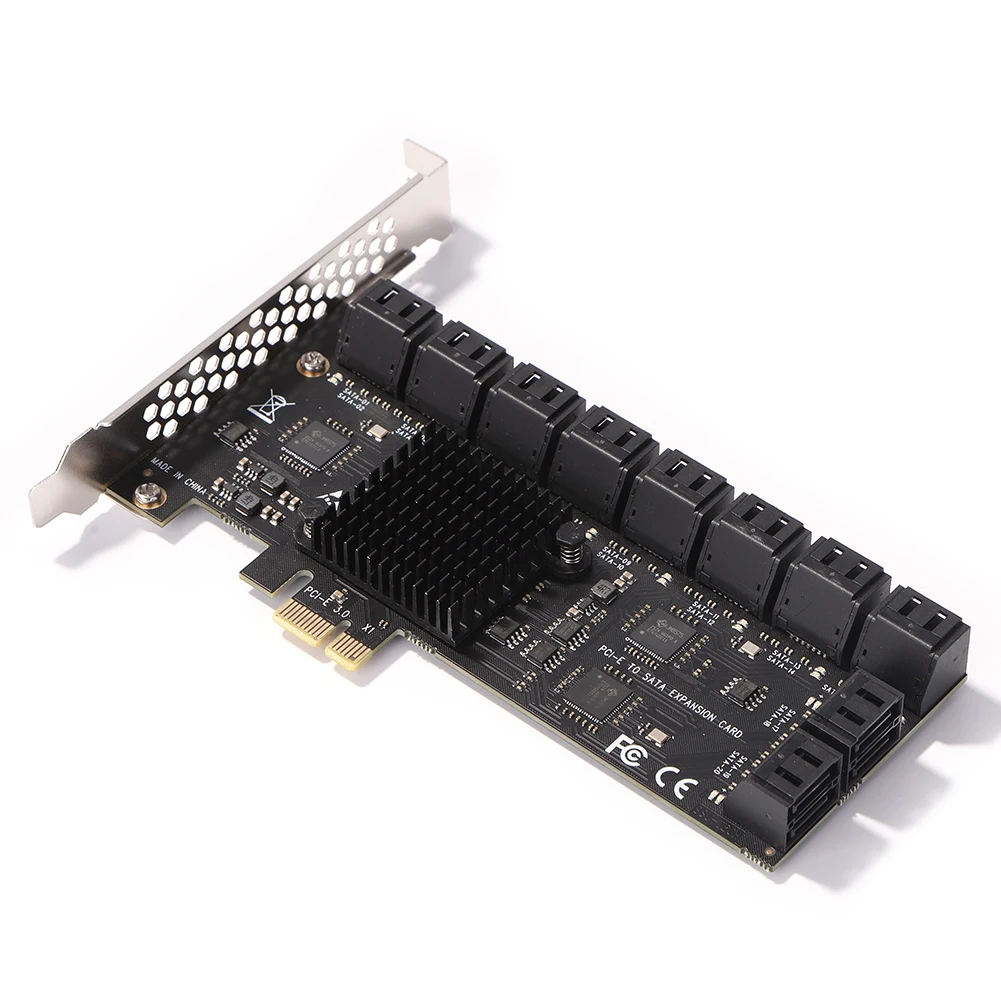

Mining 20/16/12/6 Ports SATA 6Gb to PCI Express Controller for PC Expansion Card PCIe to SATA III Converter PCIE Riser Adapter

SA3112J PCIE Adapter 20 Port PCI-Express X1 to SATA 3.0 Controller Expansion Card 6Gbps High Speed for Desktop PC

Feature:

Reliability, availability, high compatibility

Can realize fast data transmission, up to 6gbps transmission mechanism, save more time!

There are 20 standard SATA3.0 interfaces in the rear, which can be connected to multiple devices at the same time

It can be used as system disk, support high-capacity hard disk, and connect SSD optical drive!

Specification:

Product name: PCI-E to SATA3.0 expansion card

Transmission rate: 6Gbps

Bus type: PCI-E X1 can be compatible with PCI-E X4 X8 X16 and other interfaces at the same time

Bus speed: PCI-E3.0

Interface: standard SATA3.0

Number of interfaces: 20

Installation conditions: There must be one or more free PCI-E slots on the motherboard

Working temperature: -10~60 degrees

Storage temperature: -20~40 degrees

Applicable fields: desktops, workstations, servers, industrial equipment

Driver support: for Windows/Synology/MAC/NAS/LINUX, etc.

Product size: 153*120*72mm/6*4.72*2.84in

Product weight: 85g

Packing size: 184*150*30mm/7.2*5.9*1.2in

Package weight: 145g

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.
