- Processor Main Frequency: NO
- Use: Commercial
- Memory Capacity: 32GB
- Hard Drive Capacity: ≥ 1.5TB
- Model Number: Q71200S
- Processor Brand: Intel
- Processor Model: NO
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: qotom
- Origin: Mainland China
- Certification: CE
- Type: MINI PC
- Processor: Intel 12th Gen Alder Lake-S LGA1700 Processor / Intel 13th Gen Raptor Lake-S LGA1700 Processor
- Hard disk: 1 x 2.5-inch HDD/SSD 1 x M.2 for SSD (M key, Type: 2280, PCIe 4.0 x 4)
- Size: 200 x 200 x 53mm
- Package weight: 2kg
- Color: black
- Place of Origin: Guangdong, China (Mainland)
- memory: 2 x DDR4 SO-DIMM Socket
- Wifi: Optional
- Power Consumption: 65W
- Products Status: Stock
- Warranty: 1 Year
Specification
|
Category
|
Descriptions
|
|
|
Model
|
No.
|
Q71200S Series S15 Mini PC
|
|
Processor System
|
CPU
|
Intel 12th Gen Alder Lake-S LGA1700 Processor
Intel 13th Gen Raptor Lake-S LGA1700 Processor
|
|
CPU TDP
|
65W
|
|
|
Memory
|
2 x DDR4 SO-DIMM Socket (Up to 64G)
|
|
|
Chipset
|
Intel H610
|
|
|
Graphics
|
Intel UHD Graphics (By CPU)
|
|
|
LAN Chipset
|
2 x Intel I225-V/I226-V 2.5 Gigabit LAN
|
|
|
Audio
|
Realtek HD Audio
|
|
|
Watch Dog
|
Yes
|
|
|

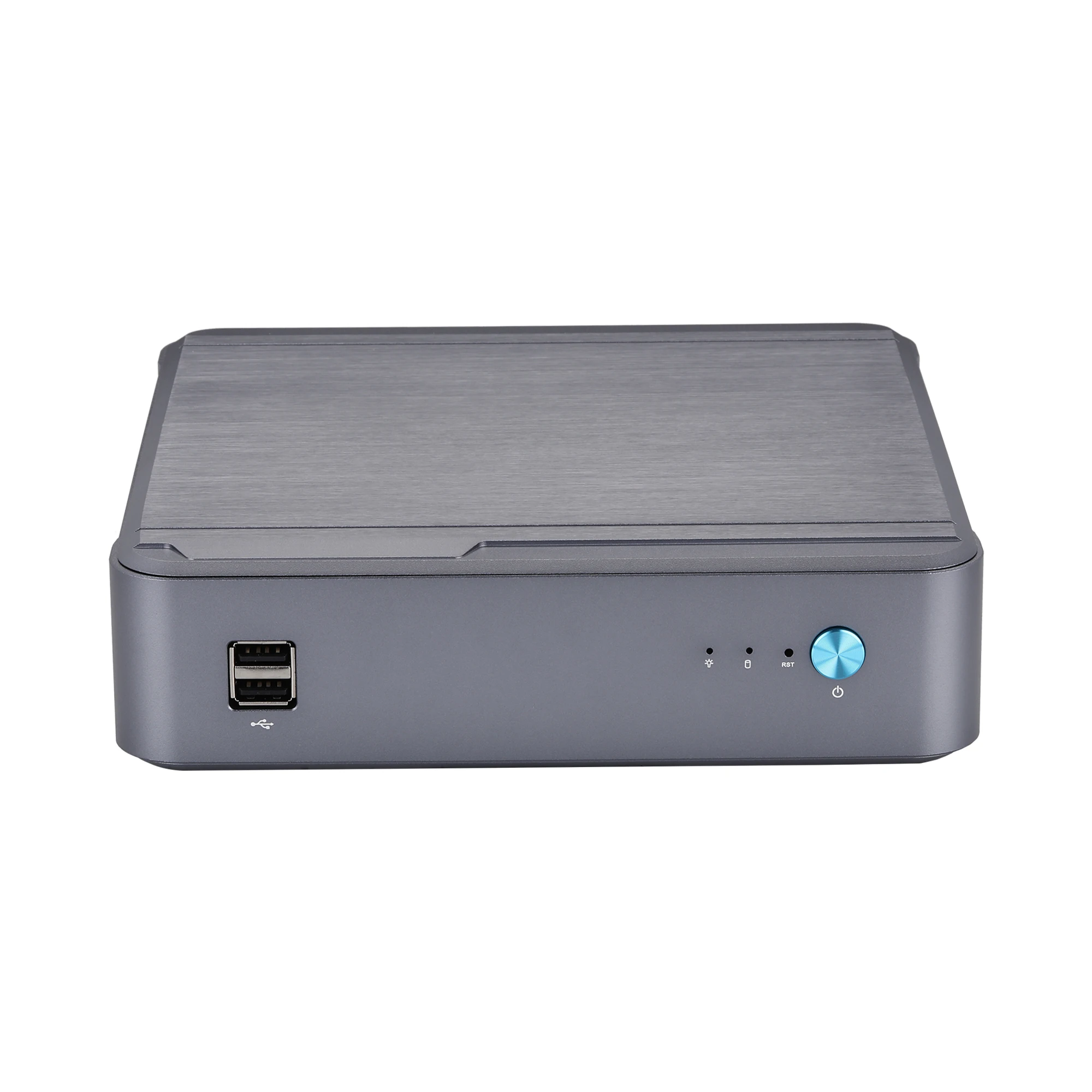

Front I/0
|
Power Button
|
1 x Power Button, 1 x Reset Button
|
|
LED
|
1 x Power LED, 1 x HDD LED
|
|
|
Serial Port
|
0
|
|
|
USB
|
2 x USB2.0
|
|
|

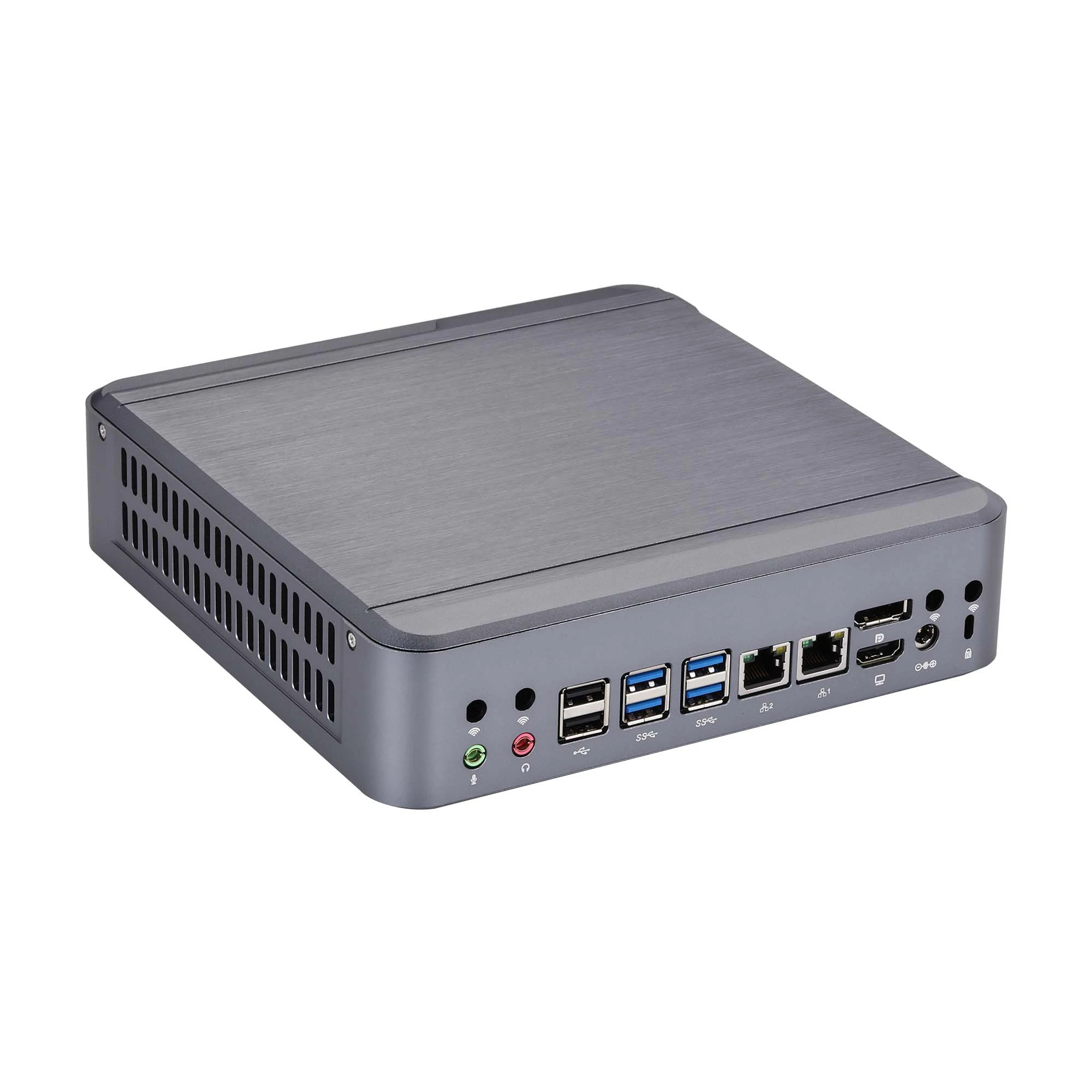

Rear I/O
|
Power
|
1 x DC Jack
|
|
Video Output
|
1 x Display Port, 1 x HD
|
|
|
LAN
|
2 x Intel I225-V/I226-V 2.5 Gigabit LAN
|
|
|
USB
|
4 x USB 3.0, 2 x USB 2.0
|
|
|
Audio
|
1 x Mic-in, 1 x Line-out
|
|
|
Storage
|
Type
|
1 x 2.5-inch HDD/SSD
|
|
1 x M.2 for SSD (M key, Type: 2280, PCIe 4.0 x 4)
|
||
|
Expansion
|
M.2
|
1 x M.2 for SSD (M key, 2280)
|
|
M.2
|
1 x M.2 for Wi-Fi (E key, 2230)
|
|
|
M.2
|
1 x M.2 for 4G/5G (B key, Type: 3042/3052)
|
|
|
SIM Card Slot
|
1
|
|
|
AutoStart Jumper
|
Yes, 1 x 3Pin, Pitch 2.0mm
|
|
|
CMOS Clear Jumper
|
Yes, 1 x 3Pin, Pitch 2.0mm
|
|
|
GPIO
|
1, 2 x 5Pin, Pitch 2.0mm
|
|
|
RS-232
|
0
|
|
|
Serial Port
|
0
|
|
|
Power Requirement
|
Power Adapter
|
19V4.74A
|
|
DC Jack
|
5.5mm, 2.5mm
|
|
|
Environmental
|
Operating Temp
|
0°C~50°C
|
|
Non-Operating Temp
|
-20°C~80°C
|
|
|
Humidity
|
10%~90%
|
|
|
Mechanical
|
Material
|
Aluminium Alloy
|
|
Dimension
|
200 x 200 x 53mm
|
|
|
Weight
|
1.6kg
|
|
|
Mounting
|
VESA Mounting Bracket
|
|
|
Packaging Dimension
|
285 x 260 x 120mm
|
|
|
Kensington Lock
|
Yes
|
|
|
Cooling Mode
|
Fan
|
|
|
OS Support
|
supports UEFI Windows 10, UEFI Linux
|
|
Note！！！
This link’s price is barebone system for NO CPU,NNO SSD NO RAM .Please contact us for specific motherboard information.
supports Windows, Linux, pfSense, CentOS, Sophos, OPNsense, VyOS, Linux iptables, Untangle, etc.
It will come with inactive Windows 10 Pro for test and you can reinstall OS by yourself. F11 key boot from USB Drive. Delete key enter BIOS.
It will come with inactive Windows 10 Pro for test and you can reinstall OS by yourself. F11 key boot from USB Drive. Delete key enter BIOS.
