- Processor Main Frequency: Based on CPU
- Use: Multimedia
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: 128GB
- Model Number: X26
- Processor Brand: Intel
- Processor Model: i7-4500U, i5-4200U, i5-3317U, i3-6157U
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: XCY
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Type: MINI PC
- Memory Types: SODIMM DDR3L / DDR4
- Hard Drive: mSATA SSD
- Support OS: Windows 10, Windows 8.1, Windows 7, Linux
- Ethernet: Realtek RTL 8111H 1000M BaseT LAN
- Audio Chip: Realtek ALC662
- WiFi: 300Mbps

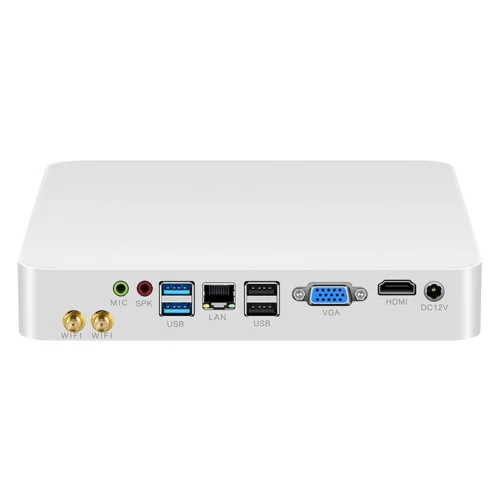

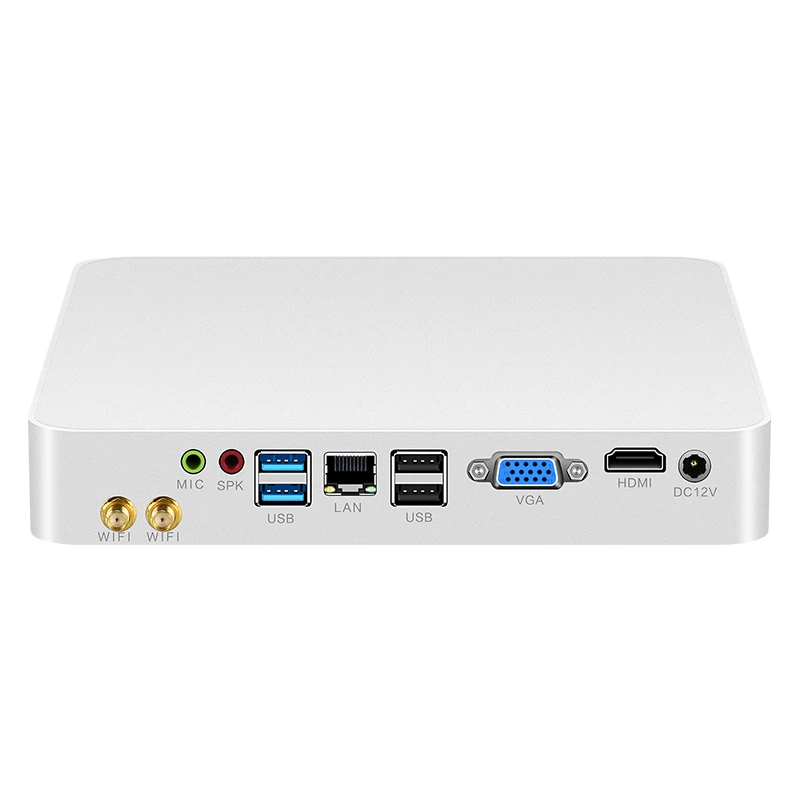

- Video Output: 1x HDMI, 1x VGA
- USB Ports: 2x USB3.0, 4x USB2.0 (1037U all USB are USB2.0)
- Audio Ports: 1x MIC, 1x SPK, 3.5mm jack
- Color: Silvery
- Features: Support Virtualization, ACPI, Auto Power on, Wake up on LAN
- PC Box Material: Full Aluminum Alloy
- Cooling System: Built-in cooler fan
- Dimension: 197*197*39mm
- Working Voltage: DC 12V 5A
|
Processors |
Intel Core i5-3317U, 2 cores 4 threads, 3M Cache, 1.70GHz, up to 2.60GHz |
|
Intel Core i5-4200U, 2 cores 4 threads, 3M Cache, 1.60GHz, up to 2.60GHz |
|
|
Intel Core i7-4500U, 2 cores 4 threads, 4M cache,1.80GHz, up to 3.0GHz |
|
|
Intel Core i3-6157U, 2 cores 4 threads. 3M Cache, 2.40GHz |
|
|
Intel Celeron J1900, 4 cores 4 threads, 2M Cache, 2.00GHz, up to 2.42GHz |
|
|
Intel Celeron 1037U, 2 cores 2 threads, 2 Cache, 1.80GHz |
|
|
MemoryTyes |
i5-3317U /i5-4200U /i7-4500U/ Celeron J1900/celeron 1037U use SODIMM DDR3L 1333/1600MHz |
|
i3-6157U use SODIMM DDR4 |
|
|
Storage |
mSATA SSD |
|
Graphics |
Integrated graphics |
|
Network Interfaces |
GbE RJ45 Realtek 8111H |
|
Expansion |
1x Mini PCI-E slot for WiFi/Bluetooth module ( half height size ) |
|
OS Support |
J1900/i5-4200U/i7-4500U support Windows 7/win8/win10, Linux/Ubuntu |
|
i3-6157U ssupport Windows 8.1/10, linux/ubuntu |
|
|
i5-3317U /1037U support Windows XP/Win7/8/10, Linux/ubuntu |
|
|
USB Ports |
2x USB3.0 ( 1037U all USB ports are USB2.0 ) |
|
4x USB2.0 |
|
|
Display Port |
1x VGA, 1x HDMI |
|
Features |
Support Wake on LAN, WOL, PXE |
|
Support automatically power on when power restored after a sudden power loss |
|
|
Audio Ports |
1x SPK, 1x MIC audio jack |
|
Construction |
On-board fan cooling |
|
Case |
Aluminum Case |
|
Dimension |
197x197x40mm |
|
Netweight |
0.8Kg |
|
OperatingTemperature |
-20℃to +60℃ |
|
RH |
5%~90% @30℃，Non-condensing |
|
Power Adapter |
Input AC100-240V, Output DC12V-5A |
|
Package List |
1x Mini PC |
|
1x AC Adapter |
|
|
1x Power cord ( EU AU US UK type plug shipped according to buyer’s address ) |
|
|
1x SATA cable |
|
|
1x User manual |
